LTE Frequency Band

LTE was developed to work in a wide frequency ranges as well as in many band groups. Many of the LTE frequency bands are used by existing cellular technologies in the other hand others are new as other users are re allocated spectrum elsewhere.

This is the main advantage of LTE in terms of usage but when it comes to developing a new LTE modem or phone this becomes one of the toughest challenge. The developers need to support a majority of frequency bands and a number of band groups.

In the current LTE phones the main issues comes in terms of reselections, handovers and other mobilities between different frequency bands.

LTE frequency bands range from Band 1 which is 2100 band till Band 44 which is TDD band. The LTE frequency bands are designed keeping backward compatibility in mind.

The complete number of frequency bands supported in LTE can be found in 36.101 from section 5.6.1-1.

FDD And TDD LTE Frequency Bands

FDD spectrum requires pair bands, one for the uplink and one for the downlink, and TDD requires a single band as uplink and downlink are on exactly the same frequency but time separated. Because of this, you will find different LTE band allocations for TDD and FDD. In some instances these bands may overlap, and it is therefore feasible, although unlikely that both TDD and FDD transmissions might be present on a particular LTE frequency band.

The greater likelihood is that a single UE or mobile will have to detect whether a TDD or FDD transmission should be made on a given band. UEs that roam may encounter both types on the same band. They will therefore need to detect what type of transmission is being made on that particular LTE band in its current location.

E-UTRA Operating BandUplink (UL) operating band
BS receive
UE transmit
Downlink (DL) operating band
BS transmit
UE receive
Duplex Mode
FUL_low – FUL_highFDL_low – FDL_high
11920 MHz1980 MHz2110 MHz2170 MHzFDD
21850 MHz1910 MHz1930 MHz1990 MHzFDD
31710 MHz1785 MHz1805 MHz1880 MHzFDD
41710 MHz1755 MHz2110 MHz2155 MHzFDD
5824 MHz849 MHz869 MHz894MHzFDD
6830 MHz840 MHz875 MHz885 MHzFDD
72500 MHz2570 MHz2620 MHz2690 MHzFDD
8880 MHz915 MHz925 MHz960 MHzFDD
91749.9 MHz1784.9 MHz1844.9 MHz1879.9 MHzFDD
101710 MHz1770 MHz2110 MHz2170 MHzFDD
111427.9 MHz1447.9 MHz1475.9 MHz1495.9 MHzFDD
12699 MHz716 MHz729 MHz746 MHzFDD
13777 MHz787 MHz746 MHz756 MHzFDD
14788 MHz798 MHz758 MHz768 MHzFDD
15ReservedReservedFDD
16ReservedReservedFDD
17704 MHz716 MHz734 MHz746 MHzFDD
18815 MHz830 MHz860 MHz875 MHzFDD
19830 MHz845 MHz875 MHz890 MHzFDD
20832 MHz862 MHz791 MHz821 MHzFDD
211447.9 MHz1462.9 MHz1495.9 MHz1510.9 MHzFDD
223410 MHz3490 MHz3510 MHz3590 MHzFDD
232000 MHz2020 MHz2180 MHz2200 MHzFDD
241626.5 MHz1660.5 MHz1525 MHz1559 MHzFDD
251850 MHz1915 MHz1930 MHz1995 MHzFDD
26814 MHz849 MHz859 MHz894 MHzFDD
27807 MHz824 MHz852 MHz869 MHzFDD
28703 MHz748 MHz758 MHz803 MHzFDD
...
331900 MHz1920 MHz1900 MHz1920 MHzTDD
342010 MHz2025 MHz2010 MHz2025 MHzTDD
351850 MHz1910 MHz1850 MHz1910 MHzTDD
361930 MHz1990 MHz1930 MHz1990 MHzTDD
371910 MHz1930 MHz1910 MHz1930 MHzTDD
382570 MHz2620 MHz2570 MHz2620 MHzTDD
391880 MHz1920 MHz1880 MHz1920 MHzTDD
402300 MHz2400 MHz2300 MHz2400 MHzTDD
412496 MHz2690 MHz2496 MHz2690 MHzTDD
423400 MHz3600 MHz3400 MHz3600 MHzTDD
433600 MHz3800 MHz3600 MHz3800 MHzTDD
44703 MHz803 MHz703 MHz803 MHzTDD
NOTE 1: Band 6 is not applicable

E-UTRA band / Channel bandwidth

E-UTRA Band1.4 MHz3 MHz5 MHz10 MHz15 MHz20 MHz
1YesYesYesYes
2YesYesYesYesYes1Yes1
3YesYesYesYesYes1Yes1
4YesYesYesYesYesYes
5YesYesYesYes1
6YesYes1
7YesYesYes3Yes1, 3
8YesYesYesYes1
9YesYesYes1Yes1
10YesYesYesYes
11YesYes1
12YesYesYes1Yes1
13Yes1Yes1
14Yes1Yes1
...
17Yes1Yes1
18YesYes1Yes1
19YesYes1Yes1
20YesYes1Yes1Yes1
21YesYes1Yes1
22YesYesYes1Yes1
23YesYesYesYes
24YesYes
25YesYesYesYesYes1Yes1
26YesYesYesYes1Yes1
27YesYesYesYes[1]
28YesYesYes1Yes1Yes1, 2
...
33YesYesYesYes
34YesYesYes
35YesYesYesYesYesYes
36YesYesYesYesYesYes
37YesYesYesYes
38YesYesYes3Yes3
39YesYesYesYes
40YesYesYesYes
41YesYesYesYes
42YesYesYesYes
43YesYesYesYes
44YesYesYesYesYes

NOTE 1: 1 refers to the bandwidth for which a relaxation of the specified UE receiver sensitivity requirement is allowed.
NOTE 2: 2 For the 20 MHz bandwidth, the minimum requirements are specified for E-UTRA UL carrier frequencies confined to either 713-723 MHz or 728-738 MHz
NOTE 3: 3 refers to the bandwidth for which the uplink transmission bandwidth can be restricted by the network for some channel assignments in FDD/TDD co-existence scenarios in order to meet unwanted emissions requirements.

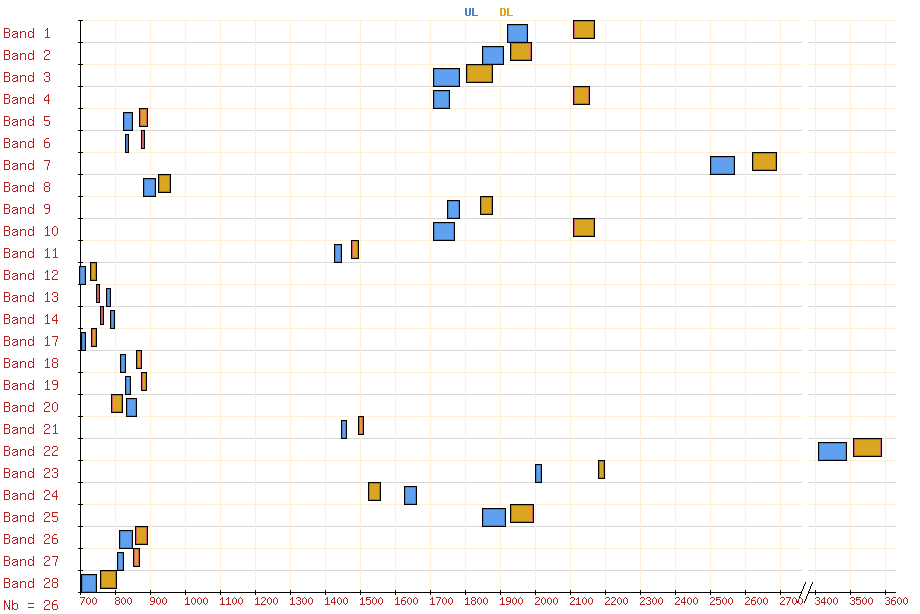

LTE FDD Spectrum

LTE FDD Spetrum

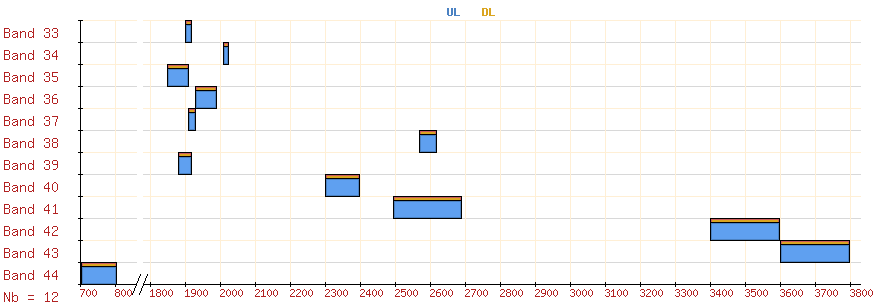

LTE TDD Spectrum

LTE TDD Spectrum
