UMTS Radio Link Protocol Decoder

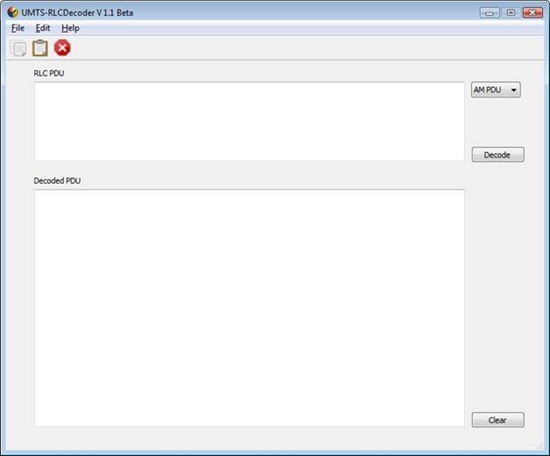

clip image0026 thumb UMTS Radio Link Protocol Decoder

What is UMTS-RLCDecoder?

UMTS-RLCDecoder is small but powerful tool for decoding RLC header information both for Acknowledged Mode RLC PDUs and Unacknowledged Mode RLC PDUs.

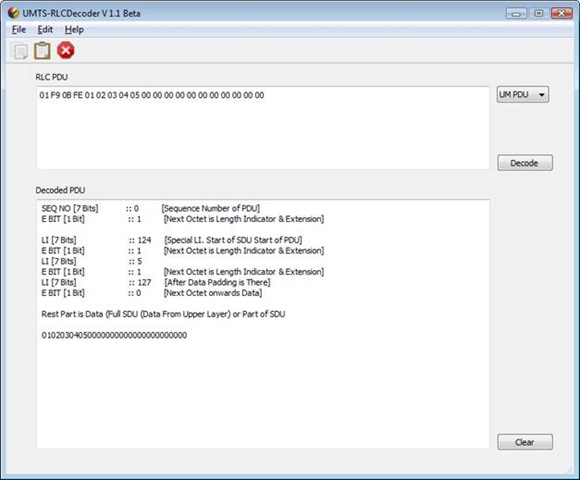

RLC Unacknowledged Mode (UM) PDU Decoding

UMTS-RLCDecoder can decode:

  • UMD RLC Header information
    • UMD PDU Sequence Number
    • Extension bit
  • Length Indicator Decoding

clip image004 thumb UMTS Radio Link Protocol Decoder

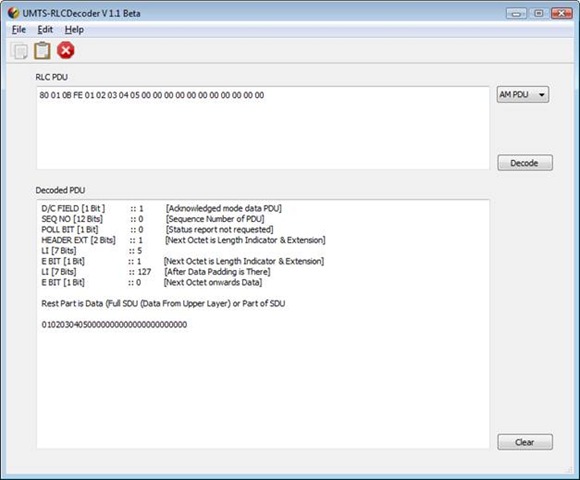

RLC Acknowledged Mode (AM) PDU Decoding

UMTS-RLCDecoder can decode the RLC Acknowledged Mode Data (AMD) PDUs and Control PDUs.

  • AMD PDU Header Decoding
    • D/C Field
    • Sequence Number
    • Polling
    • Header Extension
  • Length Indicator Decoding

clip image006 thumb UMTS Radio Link Protocol Decoder

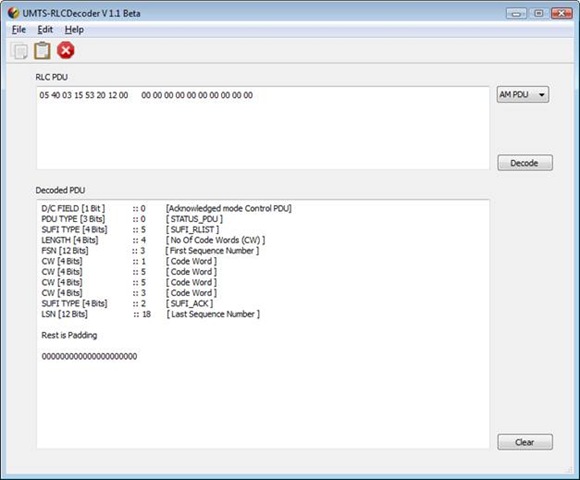

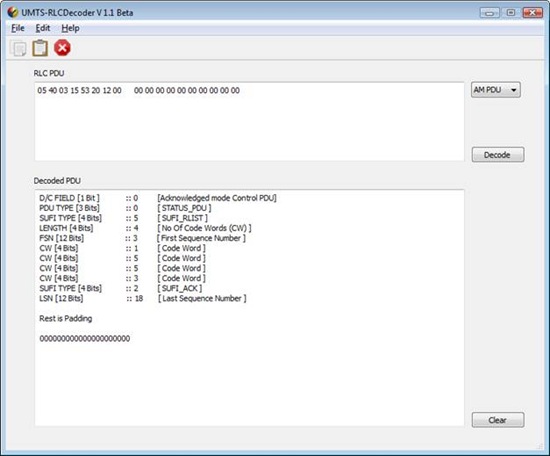

Control PDUs

  • Status PDUs
    • SUFI NO_MORE
    • SUFI ACK
    • SUFI LIST
    • SUFI RLIST
  • Reset and Reset-Ack PDUs

clip image008 thumb UMTS Radio Link Protocol Decoder





Download



1263286922 Download UMTS Radio Link Protocol Decoder


About Prashant Panigrahi

I am Prashant Panigrahi, live in Sweden. Now working as wireless professional and this website is just a reflection of what I learned. You can connect me on LinkedIn, Twitter
This entry was posted in Freebies, UMTS. Bookmark the permalink.
  • yl

    Hi Author,

    Thanks for your tool, it’s very useful. Can you share your source code so I can add more functions per my specific requirements. Thank you.

  • yl

    Hi Author,

    Thanks for your tool, it’s very useful. Can you share your source code so I can add more functions per my specific requirements. Thank you.

  • http://www.3glteinfo.com Prashant Panigrahi

    Hi,

    This tool’s code can not be shared. If you want some additional features please send us the requirements. We will try to implement it.

  • http://www.3glteinfo.com Prashant Panigrahi

    Hi,

    This tool’s code can not be shared. If you want some additional features please send us the requirements. We will try to implement it.

  • http://www.telecomhall.com RFGuy

    Hi,

    This tool is good.

    Please, also check this tool
    http://www.telecomhall.com/mobile-data-monitoring-application.aspx

    Mayb it can be useful

  • NEQB

    Hello Prashant,
    I want to know where is configured the RLC-unacnkokedged, in the Mobile station or the SIM?
    Thanks,
    Best regards,
    NEQB.

  • http://www.3glteinfo.com Prashant

    RLC is always configured in Mobile Station (UE) and in RNC (In NW).

  • http://YourWebsite NEQB

    Thanks for your quick answer,
    Please could you tell me which parameter is configured in the handset.
    Thanks,
    NQ.

  • http://www.3glteinfo.com Prashant

    Hi,

    For UM mode and other mode configuration you can refer to RLC Specification. You can get the specification here:

    http://www.3gpp.org/ftp/Specs/latest/Rel-7/25_series/25322-7a0.zip

    Refer to section 4.2.1.2 Unacknowledged mode (UM) RLC entities

    This section describes the general configuration of UM Entity.

    As RLC is configured by RRC (in Layer 3). You can use the RRC specification to know the detail configuration.

    Here is the link to RRC Specification: http://www.3gpp.org/ftp/Specs/latest/Rel-7/25_series/25331-7i0.zip

    In RRC Specification check the section for RRC Connection Setup, Radio Bearer Setup, Radio Bearer Reconfiguration.

    You can also use 3GPP specification 34.108. This describes Common test environments for User Equipment (UE);

    You can get the specification here: http://www.3gpp.org/ftp/Specs/archive/34_series/34.108/34108-710.zip

  • surender reddy

    hi Author

    in rlc, LI plus extn bit .Where we can use extn bit zero and where we can use extn bit one

    thx

  • surender reddy

    hi Author

    in rlc, LI plus extn bit .Where we can use extn bit zero and where we can use extn bit one

    thx

  • prashant_3g

    @surender reddy

    E (Extension Bit)

    E bit tells ”What there in the next field”

    If E = 0 : Next field is data or status PDU or a complete SDUIf E 0 1 : Next filed is Length Indicator (LI) followed by extension bit (E).

    http://www.3glteinfo.com/umts-radio-link-protocol-rlc-overview-25-322-20090821/

  • surender reddy

    @prashant_3g @surender reddy .can u give one exp plzzz

  • prashant_3g

    @surender reddy Hi, You download the above SW and decode one PDU. You will get detail explanation of each bits of teh RLC header both for AM and UM. FOr example decode this PDU in the decoder program:

    80010BFE01020304050000000000000000000000

  • teletopix
  • shivanandkadwadkar

    Hi,

    Is there any tool to decode UMTS MAC Protocol Header.

  • http://www.3glteinfo.com 3gLteInfo

    Hi,

    I am developing a tool for that but it will take some time as I am overloaded with other things right now.
