LIST Super field
The List Super-Field consists of a type identifier field (LIST), a list length field (LENGTH) and a list of LENGTH number of pairs.
LENGTH
-
- Length: 4 bits
- The number of (SNi, Li) pairs in the super-field of type LIST.
- The value 0000 is INVALID and STATUS PDU is discarded.
SNi
- Lenght: 12 bits
- ”Sequence number” of AMD PDU, which was not correctly received.
Li
- Length: 4 bits
- Number of consecutive AMD PDUs not correctly received following AMD PDU with”Sequence number” SNi.
|
Type = LIST
|
|
LENGTH
|
|
SN1
|
|
L1
|
|
SN2
|
|
L2
|
|
…
|
|
SNLENGTH
|
|
LLENGTH
|
Example

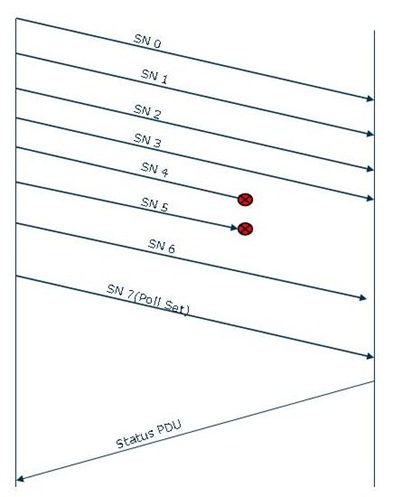

In this example:
- RLC AMD PDUs with Sequence Number 0, 1, 2, 3, 6, 7 are received correctly
- PDUs with sequence number 4 and 5 are missing.
Encoding of Status PDU
|
7
|
6
|
5
|
4
|
3
|
2
|
1
|
0
|
|
0 |
0 |
0 |
0 |
0 |
0 |
1 |
1 |
|
0 |
0 |
0 |
1 |
0 |
0 |
0 |
0 |
|
0 |
0 |
0 |
0 |
0 |
1 |
0 |
0 |
|
0 |
0 |
0 |
1 |
|
|||
|
SUFI ACK + PADDING |
|||||||
Explanation
Octet #1:
0: D/C: Data or control PDU. As it is a control PDU this bit is set to 0.
000: Control PDU Type: 000 indicates it is a Status PDU.
0011: SUFI Type. This is SUFI LIST
Octet #2 and #3
0001: LENGTH field. This indicates the number of (SNi, Ni) pairs. Here there is only one pair
0000 0000 0100: (SNi): The start sequence number. This is the Sequence number of the missing PDU. Here the missing PDUs start from Sequence Number 4 (100).
0001: (Li): The number of consecutive missing PDUs following sequence number 4 (SNi). Here there is only 1 (Sequence number 5)
Rest of the Status PDU may be encoded for SUFI ACK and Padding.
Reference
Radio Link Control (RLC) protocol specification: 3GPP TS 25.322
