5G Security Mode Command Procedure Explained

Introduction

In 5G networks, the Security Mode Command procedure is used to activate encryption and integrity protection between the User Equipment (UE) and the network.

This procedure occurs after the authentication process and ensures that all subsequent signaling messages are protected.

The Access and Mobility Management Function (AMF) selects the security algorithms and instructs the UE to apply them.

This procedure is defined by the 3rd Generation Partnership Project in:

• 3GPP TS 33.501 - 5G Security Architecture
• 3GPP TS 23.502 - 5G System Procedures
• 3GPP TS 24.501 - NAS Protocol

Why Security Mode Command Is Needed

After authentication, both the UE and the network share derived security keys.

However, encryption and integrity protection must still be activated explicitly.

The Security Mode procedure ensures:

• secure signaling communication
• protection against message tampering
• confidentiality of signaling messages

Network Functions Involved

UE (User Equipment)

Applies the selected security algorithms.

gNB (Next Generation NodeB)

Forwards signaling messages between UE and the core network.

AMF (Access and Mobility Management Function)

Selects security algorithms and initiates the security mode procedure.

Interfaces Used

Security Mode Command Call Flow

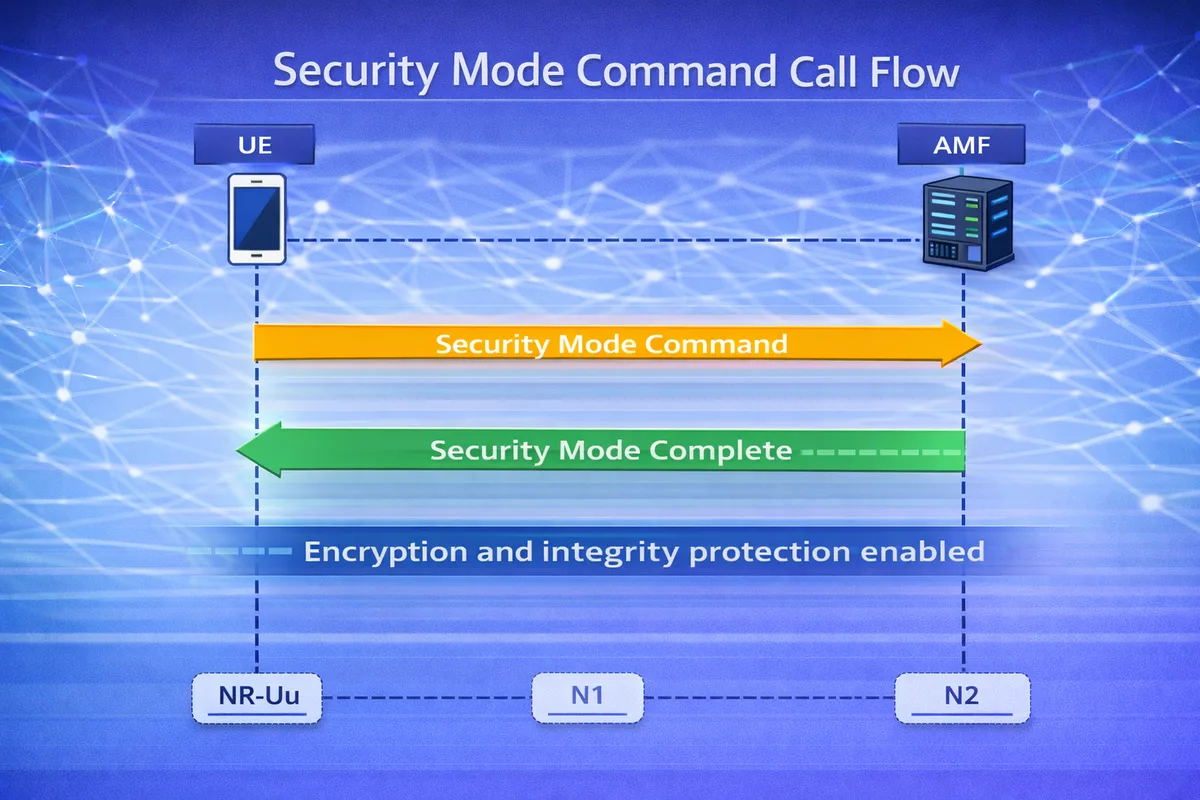

Below is the simplified signaling sequence.

UE           gNB            AMF
 |            |              |
 |<--Security Mode Command--|
 |            |              |
 |--Security Mode Complete->|

After this step, secure communication is established between the UE and the network.

Step-by-Step Explanation

Step 1: Security Algorithm Selection

The AMF selects the security algorithms based on:

• UE capabilities
• network configuration
• security policies

Typical algorithms include:

Important parameters to check

Engineers should verify:

• supported algorithms from UE capabilities
• algorithm priority configuration
• compatibility with network policy

Step 2: Security Mode Command

The AMF sends a Security Mode Command message to the UE.

This message contains:

• selected ciphering algorithm
• selected integrity algorithm
• security key identifiers

Important parameters to check

Check:

• ciphering algorithm identifier
• integrity algorithm identifier
• security context parameters

Step 3: UE Applies Security Configuration

The UE configures the selected algorithms and prepares secure communication.

This includes:

• activating encryption
• enabling integrity protection
• updating security context

Important parameters to check

Verify:

• correct key usage
• security context activation
• algorithm compatibility

Step 4: Security Mode Complete

The UE confirms successful configuration by sending Security Mode Complete.

After this step:

• signaling messages become encrypted
• integrity protection is active

Security Algorithms in 5G

Security Keys in 5G

Troubleshooting Security Mode Issues

Security Mode Failure

Possible causes:

• algorithm mismatch
• incorrect UE capability reporting
• key derivation errors

Integrity Check Failure

Possible reasons:

• incorrect integrity algorithm
• message tampering detection
• key mismatch

UE Rejects Security Mode

Possible causes:

• unsupported algorithms
• incorrect security configuration
• authentication errors

Key Messages in Security Mode Procedure

Relevant 3GPP Specifications

The Security Mode Command procedure is defined by the 3rd Generation Partnership Project in:

• 3GPP TS 33.501 - Security Architecture
• 3GPP TS 23.502 - 5G System Procedures
• 3GPP TS 24.501 - NAS Protocol

Summary

The Security Mode Command procedure activates encryption and integrity protection between the UE and the 5G network.

The process includes:

1. network selecting security algorithms
2. sending Security Mode Command
3. UE applying security configuration
4. UE confirming with Security Mode Complete

This mechanism ensures secure signaling communication and protects the network from malicious attacks.
